VEZOS PRODRIVE HD SELF-PROPELLED DRIVER
https://www.youtube.com/watch?v=mHm-29DnTxoHeavy-Duty Edition
PRODRIVE HD is a heavy-duty driver built for professional striping performance. Designed for long hours of use, it delivers consistent power and control on large-scale projects such as mall parking lots, roads and airports. Equipped with the HD Power Generator Pack (180W–12V), it provides on-board power for lighting or accessories, keeping your operation efficient and self-contained. A retractable rear storage platform allows its users to bring along cones, paint or gas tanks, making sure that your striping job is nonstop and with its fully adjustable seat, multi-adjustable hitch kit and highly responsive foot pedals the PRODRIVE HD adapts to any line striper, transforming it into a powerful ride-on unit built for endurance.
Photos may contain features that are not included on the standard edition of the product.

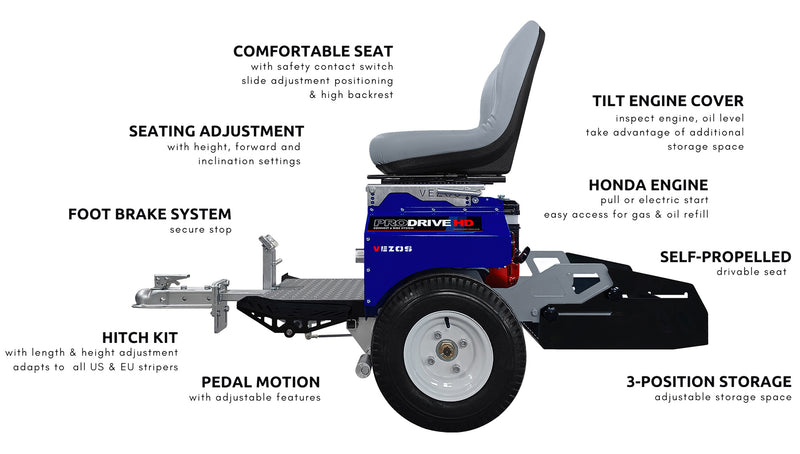

ADVANTAGES
✓ Turf tires (6-ply)
✓ Highly responsive foot pedals
✓ HONDA engine - electric start
✓ Adapts to all stripers (US & EU)
✓ HD generator pack (180 watt - 12 volt)
✓ Multiple adjustment settings for all riders
✓ Tilt engine cover, full inspection & tank refill
✓ Comfortable high-backrest seat (safety contact switch)
SPECIFICATIONS
Engine: HONDA GX200 6.5 HP (electric start)
Speed: Operation & Reverse
Max. 16 km/h (10 mph) & 10 km/h (6 mph) reverse
Fuel tank capacity: 3.6 lt (0.95 gal)
Hydraulic oil reservoir capacity: 2.7 lt (0.71 gal)
Dimensions: 141cm x 73cm x 115cm (h) | 55" x 28" x 45"

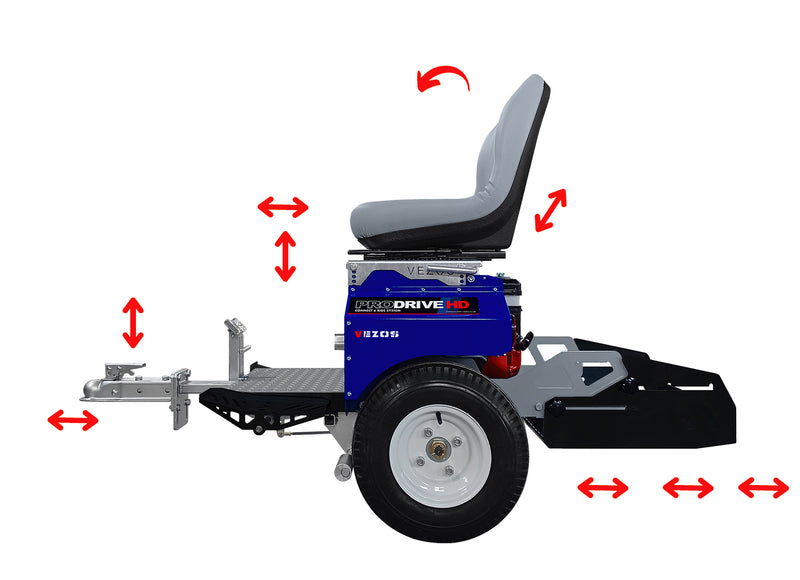

FULLY ADJUSTABLE
PRODRIVE HD self-propelled driver is fully
adjustable, making sure that all users find the
correct sitting position and allowing them to
concentrate on precise lines.
SEAT ADJUSTMENTS
- Height (multiple scales)
- Inclination
- Sitting length, slide draw bars

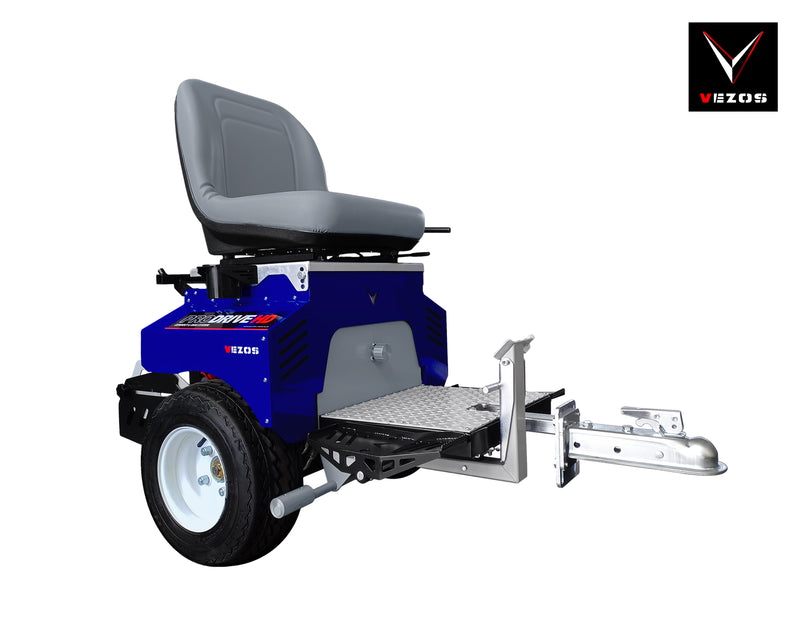

HITCH KIT ADJUSTMENTS
- Height (multiple scales)
- Length

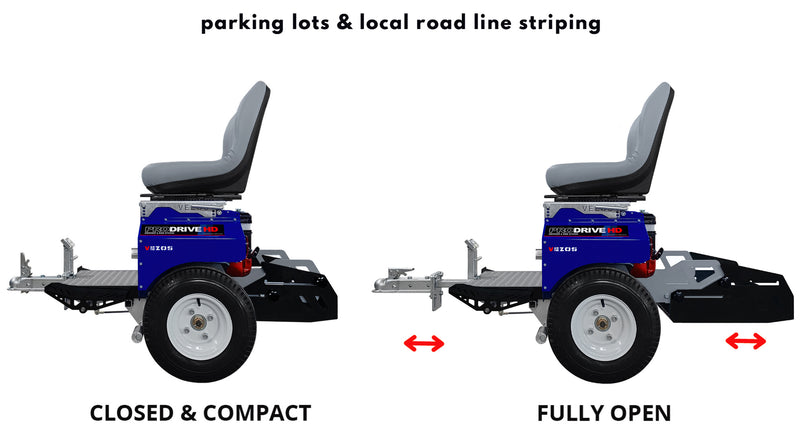

STORAGE TRAY ADJUSTMENTS
3 positions = 3 size storage options
no tools needed, just unsecure the knobs

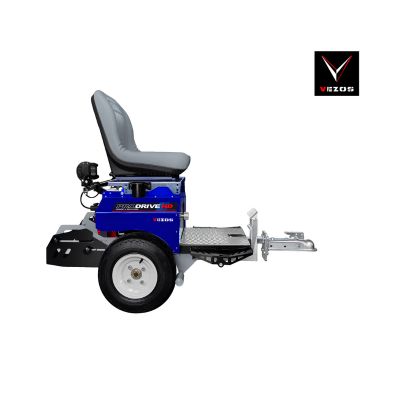

23.9115502 - PRODRIVE HD LINE DRIVER
23.9107179 - LIGHT KIT
PRODRIVE HD SP driver has a large retractable storage platform at the rear end, this way users can carry along cones, gas tank or even give a friend a ride :) A hidden storage space can be found by tilting the engine cover.
Powered by a reliable HONDA GX engine and offered as a manual pull or electric start unit. Its self-propelled system ensures a 16 km/h drive speed and accurate brake system activated with a foot pedal located at the front of the unit.

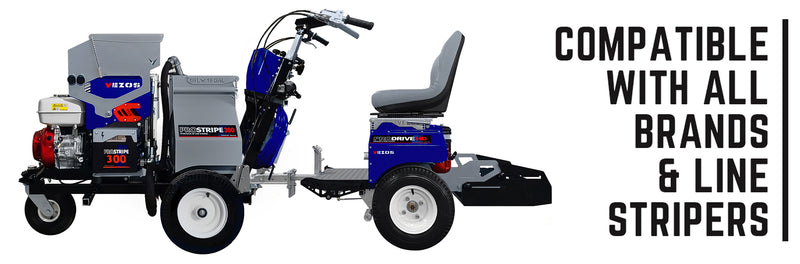

PRODRIVE HD ride along driver can connect to all PROSTRIPE line stripers with its heavy duty hitch kit. Of course VEZOS design team did not leave it at that, due to its fully adjustable concept the PRODRIVE HD can connect to any branded striper.
Tilt cover design, for easy
access to gasoline engine,
hydraulic oil reservoir and
hidden storage compartment,
simply line side level.
Adapt VEZOS "POWER PACK" to any
PRODRIVE HD line striper driver and
light up the job site with a
180watt - 12volt power source.
