VEZOS PRODRIVE SD SELF-PROPELLED DRIVER
Standard-Duty Edition
PRODRIVE SD is a self-propelled driver designed for standard everyday striping tasks. It delivers the core PRODRIVE adaptability and comfortable seating features, making it ideal for everyday parking-lot and local road work. A retractable rear storage platform allows its users to bring along cones, paint or gas tanks, making sure that your striping job is nonstop, and with its adjustable hitch kit and highly responsive foot pedals the PRODRIVE SD can be easily adapted to any striper, allowing contractors to transform their existing striper into a ride-on unit within minutes.
PRODRIVE SD driver has a large retractable storage platform at the rear end, this way users can carry along cones, gas tank or even give a friend a ride :) A hidden storage space can be found by tilting the engine cover. Powered by a reliable HONDA GX engine and offered as a manual pull start unit. Its self-propelled system ensures a 16 km/h drive speed and accurate brake system activated with a foot pedal located at the front of the unit. Due to its adjustable concept the PRODRIVE is compatible with all brands and line stripers.

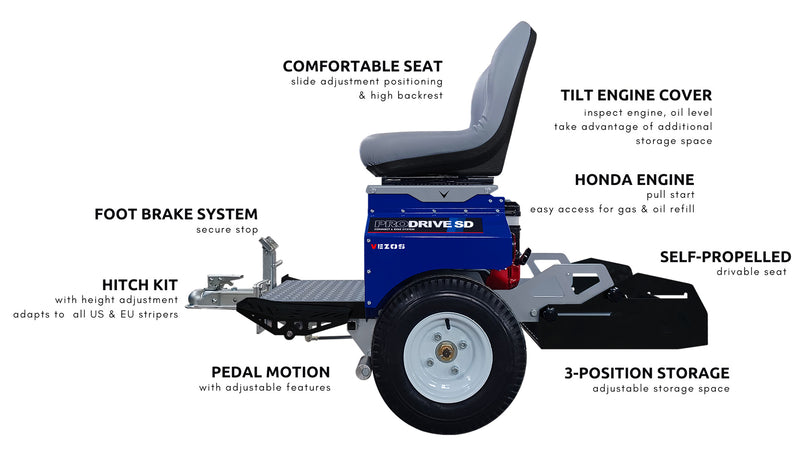

ADVANTAGES
✓ 6-ply tires
✓ HONDA engine (pull start)
✓ Highly responsive foot pedals

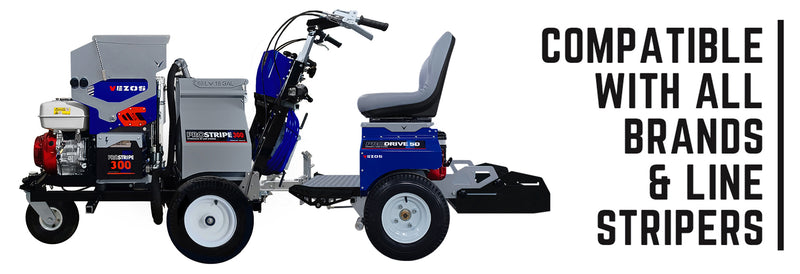

✓ Adapts to all stripers (US & EU)
✓ Comfortable high backrest seat
✓ Tilt engine cover, full inspection & tank refill
✓ 3 positions retractable tray = 3 size storage options
SPECIFICATIONS
Engine: HONDA GX200 6.5 HP (pull start)
Speed: Operation & Reverse
Max. 16 km/h (10 mph) & 10 km/h (6 mph) reverse
Fuel tank capacity: 3.6 lt (0.95 gal)
Hydraulic oil reservoir capacity: 2.7 lt (0.71 gal)
Dimensions: 141cm x 73cm x 115cm (h) | 55" x 28" x 45"

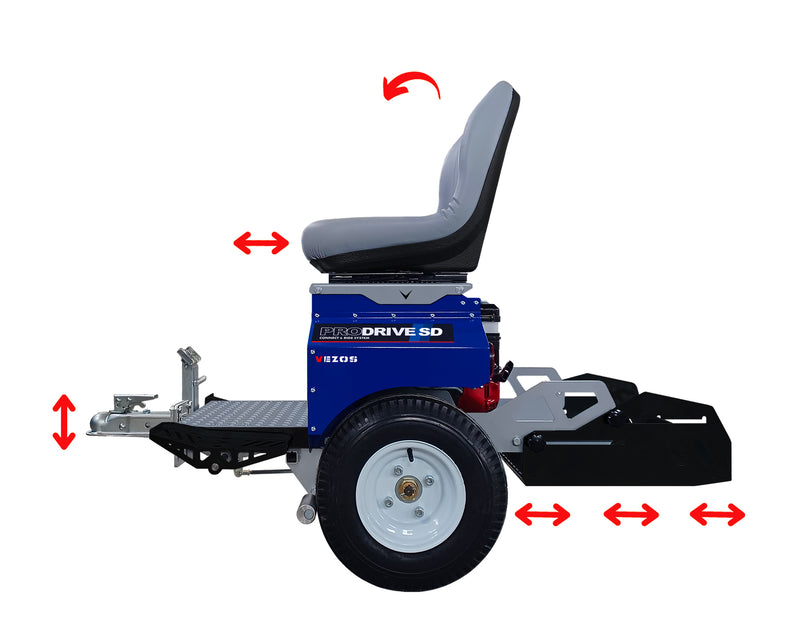

SEAT ADJUSTMENTS
- Sitting length, slide draw bars
HITCH KIT ADJUSTMENTS
- Height (multiple scales)

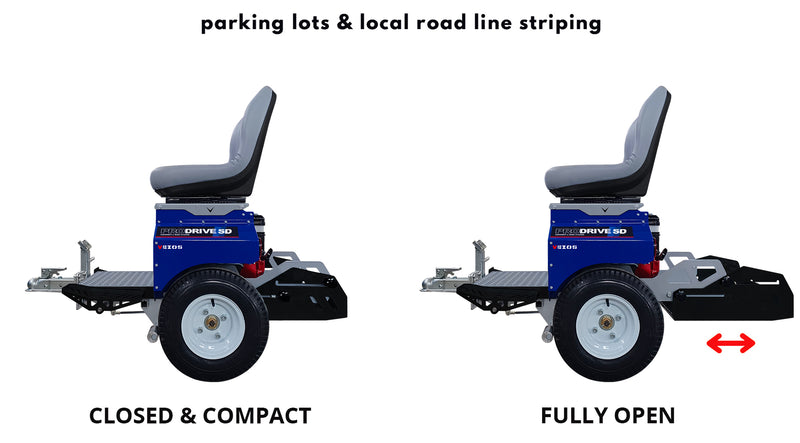

STORAGE TRAY ADJUSTMENTS
3 positions = 3 size storage options
no tools needed, just unsecure the knobs
23.9115503 - PRODRIVE SD LINE DRIVER
23.9107179 - LIGHT KIT
23.9107180 - TURF WHEEL KIT
23.9107181 - 180 WATT ELECTRIC KIT
