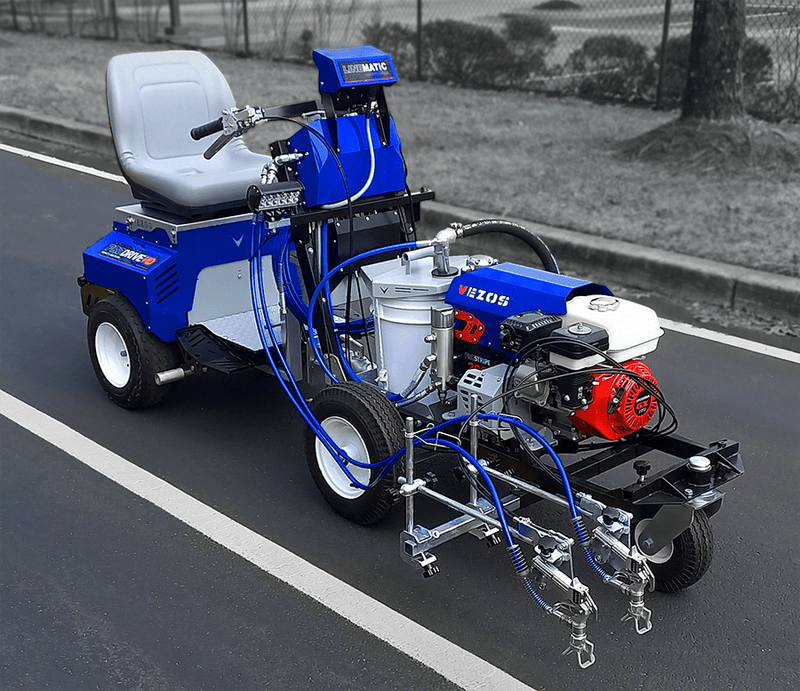

VEZOS PROSTRIPE 200 HD MANUAL WB 1 COLOR 2 GUN

Heavy-Duty Edition

When it comes to parking lot striping and local pavement marking, contractors trust the PROSTRIPE 200 HD as their go-to choice. Powered by VEZOS' powerful slow stroke hydraulic pump, this machine operates at 230 bar pressure and 1.7 gallons per minute, delivering exceptional hydraulic power in every aspect of its performance.

The PROSTRIPE 200 HD boasts the largest front swivel wheel in the industry, ensuring maximum stability and minimizing the risk of accidents. Additionally, its advanced anti-vibration system ensures perfect straight lines, even on the most uneven surfaces. This means you can rely on accurate and precise striping, every time.

Photos may contain features that are not included on the standard edition of the product.

FEATURES

• Powerful VEZOS slow stroke hydraulic pump
• 230 bar pressure and 1.7 gpm for optimal performance
• Largest front swivel wheel in the industry for added stability
• Advanced anti-vibration system for precise straight lines
• Enhanced electrical system with automotive type alternator

BENEFITS

• Improved accuracy and precision in parking lot striping and pavement marking
• Enhanced stability and reduced risk of accidents
• Increased productivity and efficiency with the PROSTRIPE 200's powerful hydraulic pump
• Multiple light kits powered by the unit's high-output automotive alternator

Add VEZOS 68 lit - 18 gal paint hopper & VEZOS 32 kg - 70 lbs vibrated assisted bead hopper

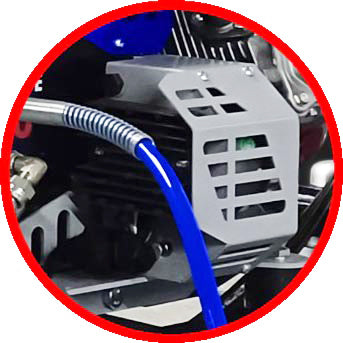

VEZOS Enhanced Electrical System allows you to add multiple lights or laser kits to your line striper, all powered by the unit's own output!

No more external batteries and extra components, as our HD automotive type generator and
battery can support up to 180 watt loads. With VEZOS, you'll have everything you need right at your fingertips!

Designed to provide reliable and consistent power, even in the toughest conditions.
Whether you're working with a laser in bright sunlight or with a light kit in complete darkness,
our system will deliver the performance you need.

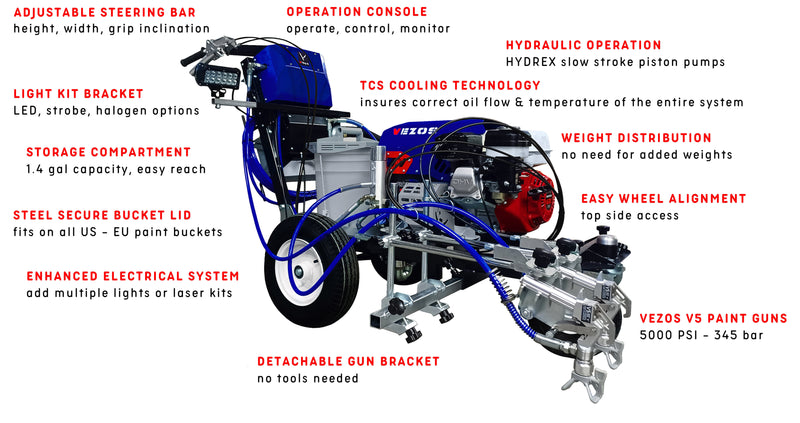

WIDE VIEW DESIGN
√ Low profile design for panoramic view of job site

HYDREX PISTON PUMP
√ Hydraulic piston pump HYDREX 50
√ Slow stroke 6.5 lit/min - 1.7 gal/min delivery
√ Built in filter

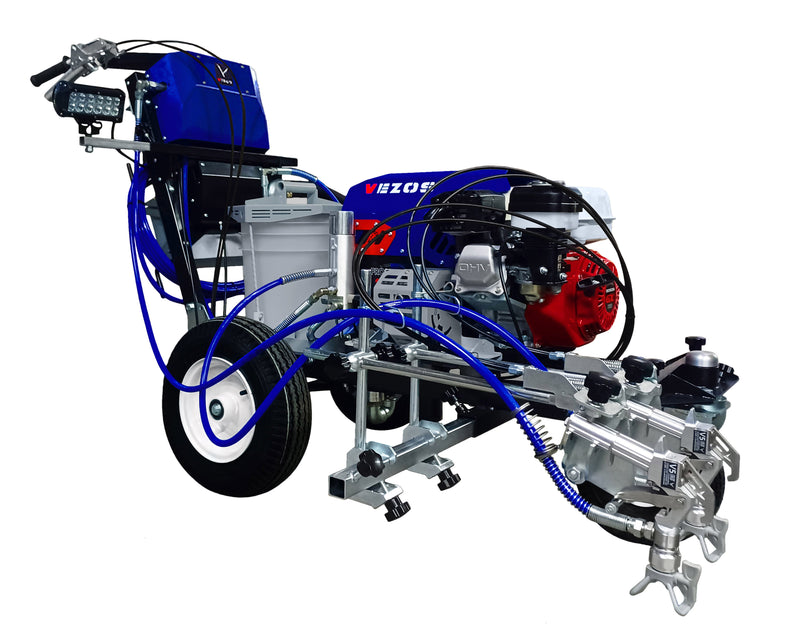

MANUAL GUN OPERATION
√ Electric paint gun actuator
√ 1-2 manual paint gun set-up
√ Adjustable gun height
√ Front and rear gun placement
√ Removable gun for stenciling

OPERATION CONSOLE PS 200 HD
√ Engine throttle
√ Engine & system ON/OFF
√ Pressure gauge
√ Hand brake
√ Cup holder

EXTRA FEATURES
√ Anti-vibration control
√ T.C.S cooling technology
√ 5 gallon plastic paint bucket
√ Steel secure bucket lid (fits on all US-EU paint buckets)
√ Hydraulic oil reservoir 2.5 gal & oil level indicator
√ Storage compartment (1.4 gal capacity, easy reach)
√ Enhanced electrical system (automotive type alternator)
√ Battery warning light & buzzer
√ Fully adjustable steering bar (height, width, grip inclination)

OPTIONAL ADD-ONS
√ Re-striping pointer
√ Paint hopper (18 gal)
√ Gravity glass bead system (70 lbs)
√ LINEMATIC system (automatic operation)
√ Light kit brackets (led, strobe, halogen etc.)

SPECIFICATIONS
